SMD assembly
Our Electronics Assembly Hub is the center for assembly and connection technology: SMD automatic assembly, manual assembly according to IPC as well as tests and inspections.
Welcome to the center for cutting-edge SMD assembly solutions. In the world of electronics manufacturing, advances in SMD technology continue to push the boundaries of what is possible. With reliability, efficiency and precision in every aspect of electronic component assembly, we offer customized SMD assembly solutions tailored to the specific needs of our customers.
Our SMD assembly capabilities are in line with our commitment to excellence and technological leadership. With state-of-the-art manufacturing equipment and a team of experts, we are well equipped to meet the growing demands in various industries - from medical technology to industrial applications.
Contact our application experts
Automatic component placement
Our automated placement lines enable fast, precise and controlled placement processes. The SMD (surface-mounted device) components are placed in the previously applied solder paste by machine. In the subsequent reflow soldering process, the mechanical fixation and electrical contacting takes place. We work together with renowned machine manufacturers who stand for continuous further development of the processes (e.g. Yamaha, SMT, Göpel, MyData, Uniclean, Kolb). Our procedures and processes are constantly being optimized.
- Precise and variable dispensing with Jet Printer
- Fast, precise and controlled placement processes
- Reflow soldering processes with variable soldering programs; possible variation of parameters: Oxygen content / nitrogen content / with and without vacuum, time and temperature, etc.
- Inspection of all circuits using 2D and 3D AOI technology
- X-ray inspection / CT scan for non-destructive material testing, localization; volume analysis

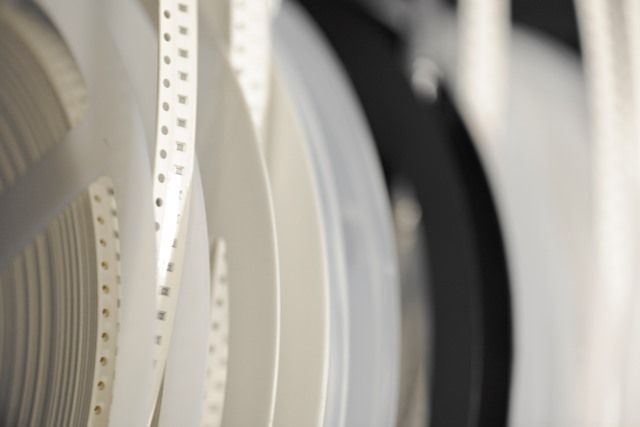

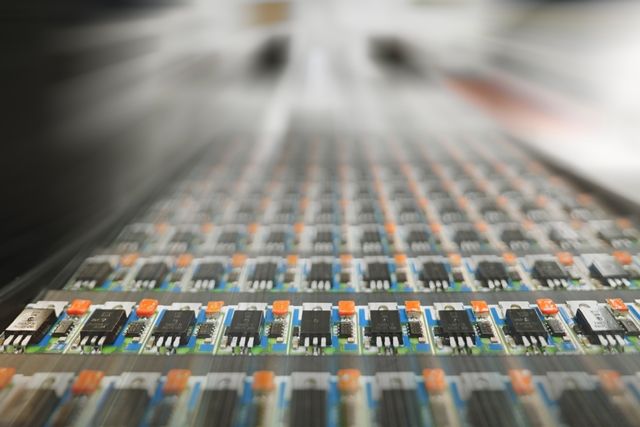

SMD automatic assembly
We manufacture series and quantities from 1 from samples and prototypes to small and large series. Various soldering techniques are used. In addition to SMT (surface-mounting technology) surface mounting, we also offer SMD assembly with adhesive. Depending on requirements, we use various solder pastes, including lead-free ones. Our sales team will be happy to advise you on individual options.
- Reflow soldering / full convection reflow soldering (reflow soldering),
- Vapor phase soldering/condensation soldering (vapor phase soldering)
- Vacuum soldering SMT
Facts and figures
| Smallest component that can be set by machine: | 01005 Inch |
|---|---|
| Other components: | SOIC, SOT, SOD, TSOP, MELF, CSP, QFP, BGA etc. |
| Assembly performance: | up to 90,000 BE per hour |
| Assembly time: | Board populated on both sides with 825 BE (0201 to FBGA484) in 265 seconds |
| Optical 3D inspection of height and position in the µm range | |
| Prototypes and sample production | |
| Small, medium and large series |

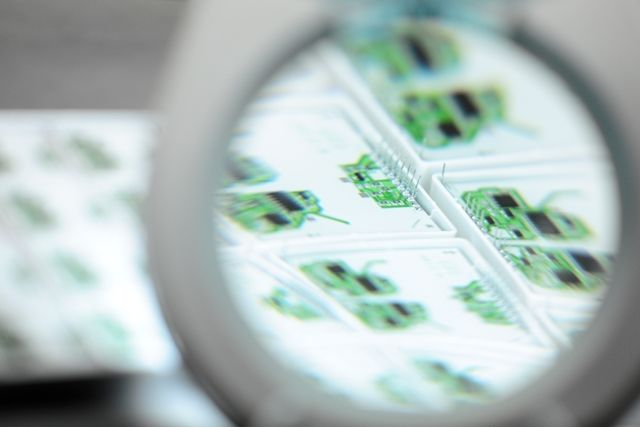

Component cleaning
An important process step for quality assurance is the cleaning of components and circuit carriers during or after assembly. Our automated cleaning process uses a multi-chamber cleaning system. Variable cleaning programs (variation of parameters: Time, temperature, with and without ultrasonic cleaning) enable optimum results.</p
- Use of a contaminometer (checking the particle load and degree of soiling)
- Fine washing for delicate and sensitive components and PCBs using Neukum and ISO washing
- Collaboration and advice from the world's leading provider of precision cleaning in electronics production, Zestron GmbH

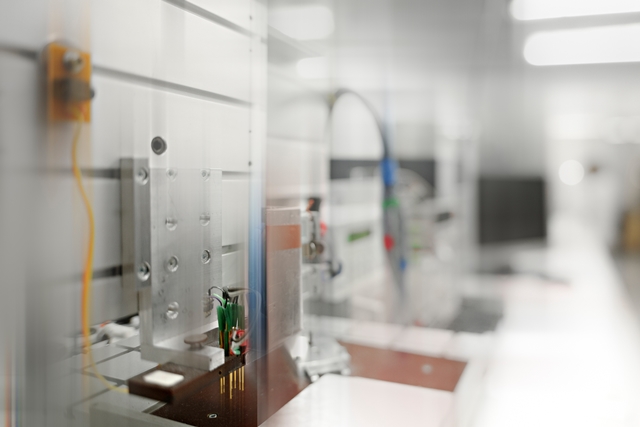

Measuring and testing technology - Process control
The functionality is tested and ensured by our trained and qualified specialist staff and our engineers in the field of measurement technology. We are able to respond to customer requirements. Together with our team, we can design suitable test adapters and check their functionality using software.
- General data acquisition, storage and analysis options for selected parameters
- Determination of measured variables such as R (resistance [Ω]), L (inductance [H]), C (capacitance), (DC voltage), (DC current), (AC voltage), (AC current) or time signals
- Execution of function test (FCT), in-circuit test (ICT), sensor test, boundary scan, high-voltage test and memory programming
- Automated test sequences
We will be happy to advise you on your development project and the optimum substrate and packaging technologies.
